Parent Layer: 18K

Name: State Road Centerlines_18K

Display Field: ROADNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN><SPAN>Road segments representing centerlines of all roadways or carriageways in the vicinity of Utah County. Typically, this information is compiled from orthoimagery or other aerial photography sources. This representation of the road centerlines support address geocoding and mapping. It also serves as a source for public works and other agencies that are responsible for the active management of the road network. Data schema reflects ESRI's Local Government Data Model with additional fields pertinent for local Utah County processes and applications. </SPAN></SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Copyright Text: The GIS Division of Utah County's Information Systems Department.

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Effective Min Scale: 25000

Effective Max Scale: 15001

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.2489757771648252E7
YMin: 4834370.115508081
XMax: -1.2339953448456468E7
YMax: 4948511.198068127
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [245, 162, 122, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: N/A

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• CENTERLINEID ( type: esriFieldTypeString, alias: CenterlineID, length: 20 )
• FROMLEFT ( type: esriFieldTypeInteger, alias: Left From Address )
• TOLEFT ( type: esriFieldTypeInteger, alias: Left To Address )
• FROMRIGHT ( type: esriFieldTypeInteger, alias: Right From Address )
• TORIGHT ( type: esriFieldTypeInteger, alias: Right To Address )
• ROADPREDIR ( type: esriFieldTypeString, alias: Road Prefix, length: 2 )
• ROADNAME ( type: esriFieldTypeString, alias: Road Name, length: 50 )
• ROADTYPE ( type: esriFieldTypeString, alias: Road Type, length: 4 )
• ROADPOSTDIR ( type: esriFieldTypeString, alias: Post Direction, length: 2 )
• FULLNAME ( type: esriFieldTypeString, alias: Full Road Name, length: 125 )
• ALTROADNAME ( type: esriFieldTypeString, alias: Alternate Road Name, length: 30 )
• ALTROADTYPE ( type: esriFieldTypeString, alias: Alternate Road Type, length: 4 )
• ALTROADNAME2 ( type: esriFieldTypeString, alias: Alt Road Name2, length: 30 )
• ALTROADTYPE2 ( type: esriFieldTypeString, alias: Alt Road Type2, length: 4 )
• MUNILEFT ( type: esriFieldTypeString, alias: Municipality on Left, length: 30 )
• MUNIRIGHT ( type: esriFieldTypeString, alias: Municipality on Right, length: 30 )
• ZIPLEFT ( type: esriFieldTypeString, alias: Zip on Left, length: 5 )
• ZIPRIGHT ( type: esriFieldTypeString, alias: Zip on Right, length: 5 )
• FEDROUTE ( type: esriFieldTypeString, alias: Federal Route, length: 10 )
• FEDRTETYPE ( type: esriFieldTypeString, alias: Federal Route Type, length: 20 )
• AFEDROUTE ( type: esriFieldTypeString, alias: Alternate Federal Type, length: 10 )
• AFEDRTETYPE ( type: esriFieldTypeString, alias: Alternate Federal Route Type, length: 20 )
• STROUTE ( type: esriFieldTypeString, alias: State Route, length: 10 )
• STRTETYPE ( type: esriFieldTypeString, alias: State Route Type, length: 20 )
• ASTRTE ( type: esriFieldTypeString, alias: Alternate State Route, length: 10 )
• ASTRTETYPE ( type: esriFieldTypeString, alias: Alternate State Route Type, length: 20 )
• CTYROUTE ( type: esriFieldTypeString, alias: County Route, length: 10 )
• FAEROUTE ( type: esriFieldTypeString, alias: FEA Route Number , length: 10 )
• PROJECTID ( type: esriFieldTypeInteger, alias: UC Project ID )
• SURFACE ( type: esriFieldTypeString, alias: Surface, length: 20 )
• CONDITION ( type: esriFieldTypeString, alias: Condition of Road, length: 20 )
• ROW_WIDTH ( type: esriFieldTypeSmallInteger, alias: ROW Width )
• ROADCLASS ( type: esriFieldTypeString, alias: Road Class, length: 20 )
• RDCLASS_UHJCA ( type: esriFieldTypeString, alias: UHJCA Class, length: 5 )
• CFCCCODE ( type: esriFieldTypeString, alias: CFCC Code, length: 3 )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By )
• MAINTBY ( type: esriFieldTypeSmallInteger, alias: Maintained By )
• DCLASSID ( type: esriFieldTypeString, alias: D Class ID, length: 4 )
• RS2477 ( type: esriFieldTypeString, alias: RS2477, length: 3 )
• COUNTYNAME ( type: esriFieldTypeString, alias: County Name, length: 20 )
• CULDESAC ( type: esriFieldTypeString, alias: Cul de sac, length: 5 )
• ONEWAYDIR ( type: esriFieldTypeString, alias: One Way Indicator, length: 10 )
• ROADLEVEL ( type: esriFieldTypeInteger, alias: Above or Below Grade )
• INWATER ( type: esriFieldTypeString, alias: In Water, length: 5 )
• SOURCEFEATUREID ( type: esriFieldTypeString, alias: Source Feature ID, length: 20 )
• DATASOURCENAME ( type: esriFieldTypeString, alias: Data Source, length: 100 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 100 )
• ISVISIBLE ( type: esriFieldTypeString, alias: Is Visible, length: 5 )
• EDITCOMMENTS ( type: esriFieldTypeString, alias: Edit Comments, length: 250 )
• CREATED_USER ( type: esriFieldTypeString, alias: CREATED_USER, length: 255 )
• CREATED_DATE ( type: esriFieldTypeDate, alias: CREATED_DATE, length: 8 )
• LAST_EDITED_USER ( type: esriFieldTypeString, alias: LAST_EDITED_USER, length: 255 )
• LAST_EDITED_DATE ( type: esriFieldTypeDate, alias: LAST_EDITED_DATE, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE_Length ( type: esriFieldTypeDouble, alias: SHAPE_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

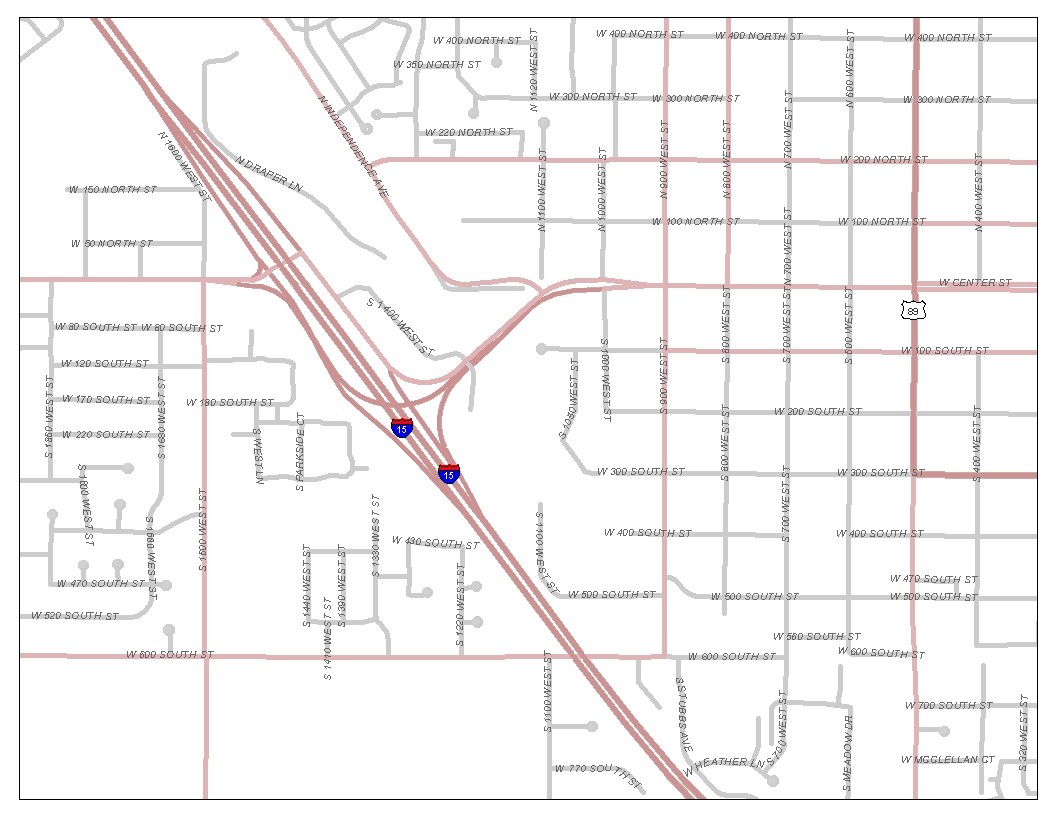

  Iteminfo   Thumbnail   Metadata
